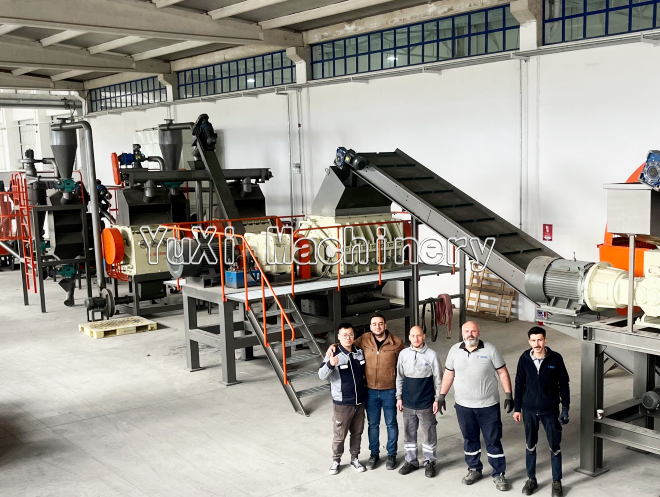

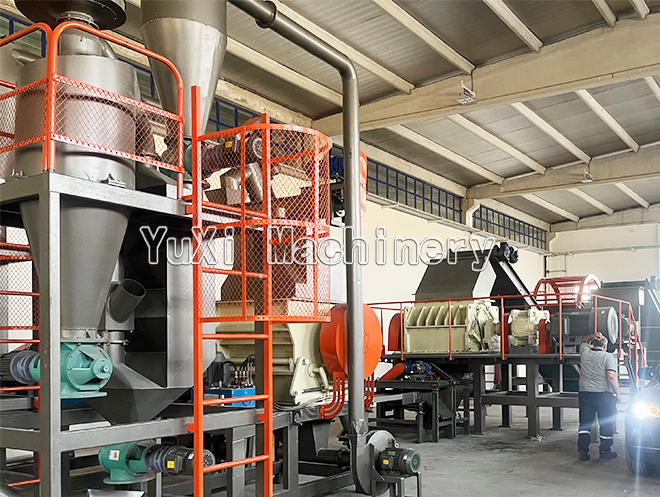

The waste tire recycling production line is an equipment system that converts waste tires into recyclable resources such as rubber particles and rubber powder through physical and mechanical processing, with dual environmental and economic benefits.
Application

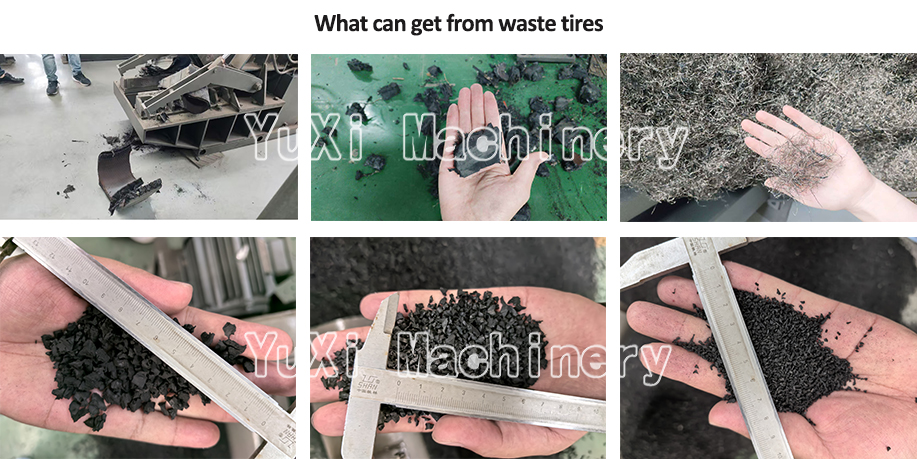

1.Rubber Product Recycling
Rubber powder can replace virgin rubber in the production of tires, hoses, rubber pads, and other products, reducing the demand for virgin rubber.
2.Asphalt Modification
Adding rubber powder to asphalt can improve road performance, extend service life, and is widely used in highway construction.
3.Waterproof Materials and Building Materials
It can be made into waterproof coatings, rubber floor tiles, or runway materials for use in buildings, gardens, and other scenes.
4.Industrial Raw Materials
Steel wire can be recycled for metal processing, and fiber materials can be used to produce soundproof cotton, insulation materials, etc.

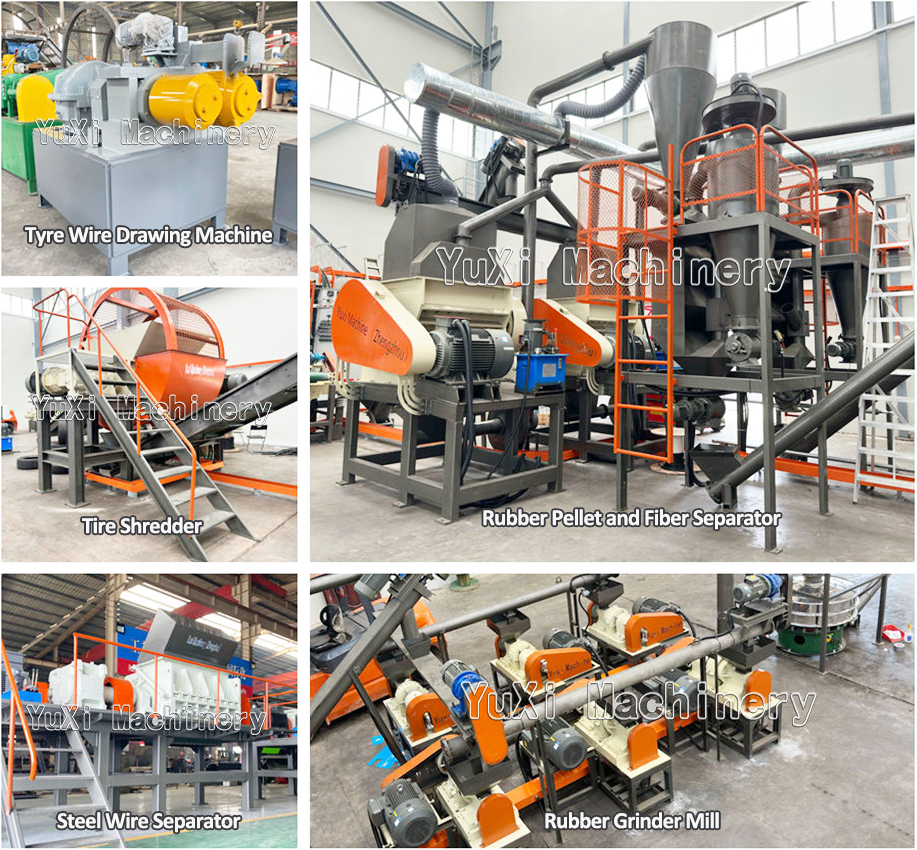

Working Process
1.Tyre Wire Drawing Machine: removes tire steel rings.

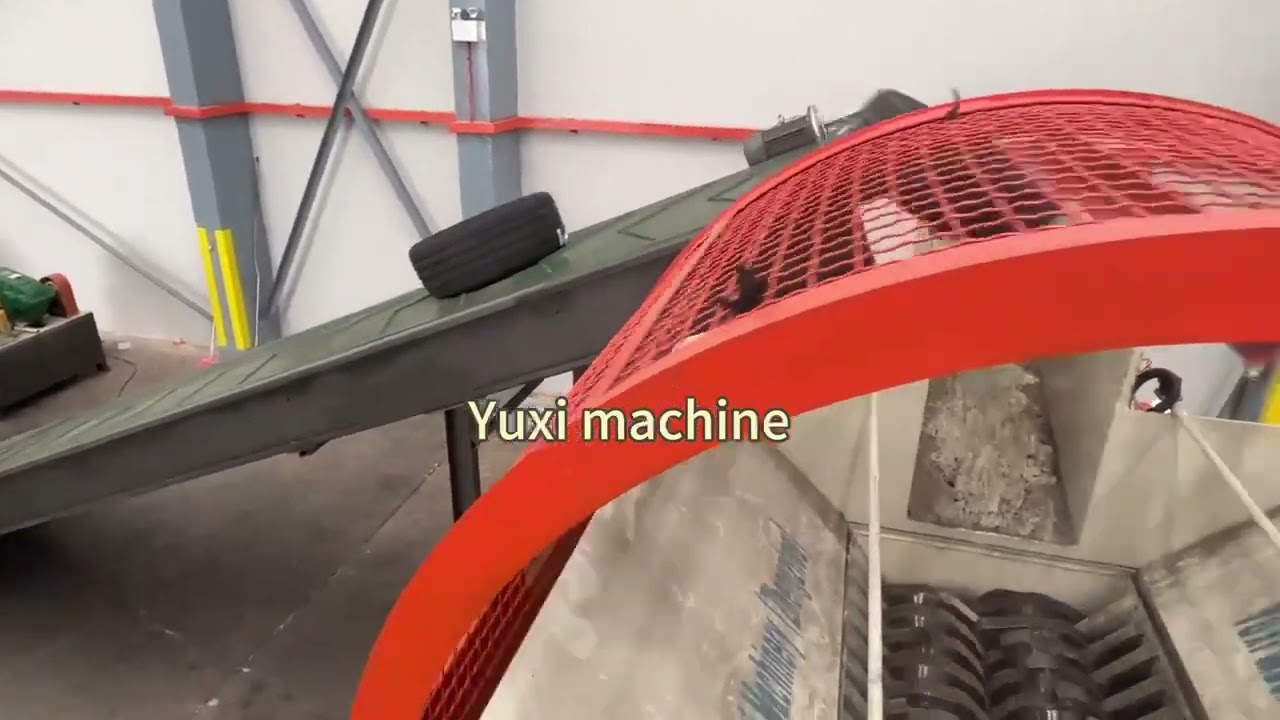

2.Tire Shredder: shreds waste tires into blocks for subsequent processing.
3.Steel Wire Separator: Separate rubber and steel wire through mechanical extrusion to recover metal resources.
4.Rubber Pellet Machine: Crush rubber blocks into 1-7mm pellets.
5.Magnetic Separator: removes impurities and recovers metal components (such as steel wire).
6.Grinder Mill:Grind rubber particles into 5-80 mesh rubber powder
7.Dust Removal System: Reduce dust pollution through wind and water cooling and spraying devices.
8.Automatic Bagging System:The processed rubber particles or powder are quantitatively packed into packaging bags
Feature
1.Automation and Intelligence
Modern production lines adopt PLC control systems to achieve automated operations
2.Environmental Protection and Energy Conservation
Equipped with a closed dust removal system and water cooling system, dust and smoke emissions meet environmental standards. The equipment has low energy consumption, stable operation, and meets the requirements of green and low-carbon.
3.Efficient and Flexible
Support customized production volume. Adopting modular design, easy installation and maintenance
